Revolutionizing Furniture Finishing: PURETE Spray Line for Oak Furniture West
Client: Oak Furniture WestCore Business: Manufacturing of wooden case goods (bedroom furniture, TV cabinets, wardrobes, and decorative storage pieces)Facility: 300,000 sq. ft. manufacturing plant in Tijuana, Mexico
The Furniture Finishing Industry Pain Points
Wooden furniture manufacturers like Oak Furniture West face critical challenges in spray finishing operations:
- Uneven Paint Application: Poor air flow systems cause inconsistent pressure, leading to uneven spray patterns, sagging, and rework
- Frequent Contamination: Direct fan blowers create concentrated pressure, lifting paint mist to contaminate the spray booth ceiling and ruining finishes
- Short Belt Lifespan: Long belts accumulate partially cured paint over time, leading to difficult cleaning, frequent replacement, and high maintenance costs
- Unstable Cleaning Processes: Floor-mounted cleaning systems are affected by uneven floors and operator skill levels, resulting in inconsistent cleaning quality
- Safety Risks: Electric control buttons create spark hazards in solvent-rich environments, threatening workplace safety
- Low Productivity & High Labor Costs: Slow cycles, high defect rates, and frequent maintenance reduce output while increasing operational expenses

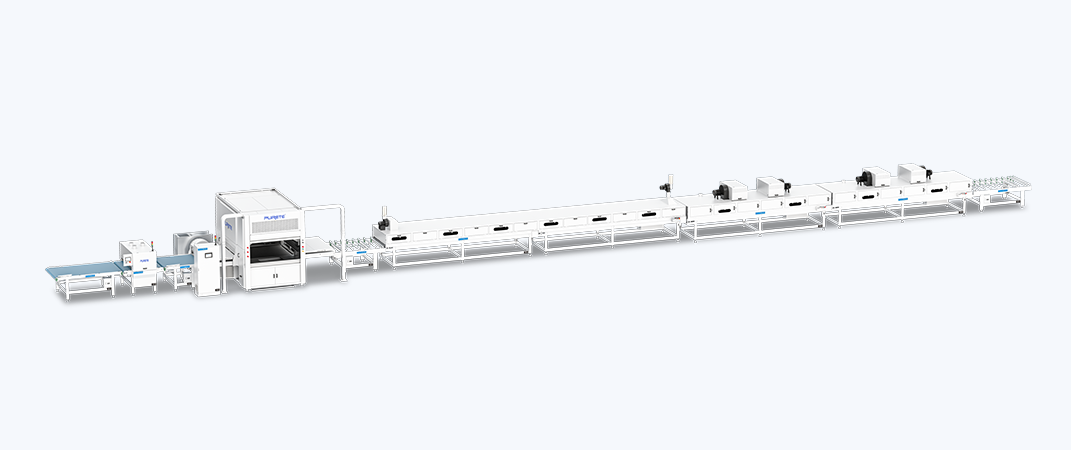

The PURETE Solution: Advanced Spray Painting Production Line
To address these challenges, Oak Furniture West partnered with Foshan Shunde PURETE Mechanical Co., Ltd. to implement a state-of-the-art spray painting line. This 41-meter, 147KW system transforms furniture finishing for bedroom sets, cabinet doors, and panel components, delivering unmatched quality, efficiency, and safety.
Key Advantages & Technical Innovations
1. European-Inspired Airflow System
- Uniform Pressure Distribution: Specialized pressure and exhaust air design ensures even airflow across the spray zone
- Eliminates Paint Mist Contamination: Prevents concentrated pressure spikes that cause mist to rise and pollute the booth ceiling, ensuring consistent, defect-free finishes
- Ideal for All Coatings: Delivers perfect results with both water-based and solvent-based paints
2. Short Conveyor Belt System (Solvent-Based Paint Specialization)
- Immediate Post-Spray Cleaning: Belts exit the spray booth directly into the cleaning station, minimizing unnecessary exposure to solvent vapors
- Reduced Partial Curing: Eliminates micro-cured paint buildup on belt surfaces, simplifying cleaning and extending belt life
- 50% Lower Consumable Costs: Replacement belts cost half the price of standard long belts
- Stable & Low-Maintenance: Short design prevents warping, stretching, and tracking issues, reducing downtime and maintenance frequency
3. Integrated Belt Cleaning System
- Frame-Mounted Design: Cleaning unit is built into the equipment frame, unaffected by uneven workshop floors
- Mechanical Precision Cleaning: No secondary positioning required; cleaning quality remains consistent regardless of operator skill level
- Closed System for Reduced Emissions: Enclosed cleaning environment minimizes solvent evaporation, improving workplace safety and reducing material waste
4. Pneumatic Control Safety System
| Metric | Traditional Spray Line | PURETE Spray Line | Improvement |
|---|
| Daily Production (Panels) | 600 units | 1200 units | +100% |
| Defect Rate | 12% | <3% | -75% |
| Belt Replacement Cycle | 3 months | 14 months | +200% |
| Cleaning Cycle Time | 4 hours/shift | 1.5 hours/shift | -62.5% |
| Consumable Cost/Year | $12,000 | $6,000 | -50% |
| Labor Requirement | 4 operators/shift | 2 operators/shift | -50% |
| Safety Incidents/Year | 2–3 incidents | 0 incidents | 100% reduction |

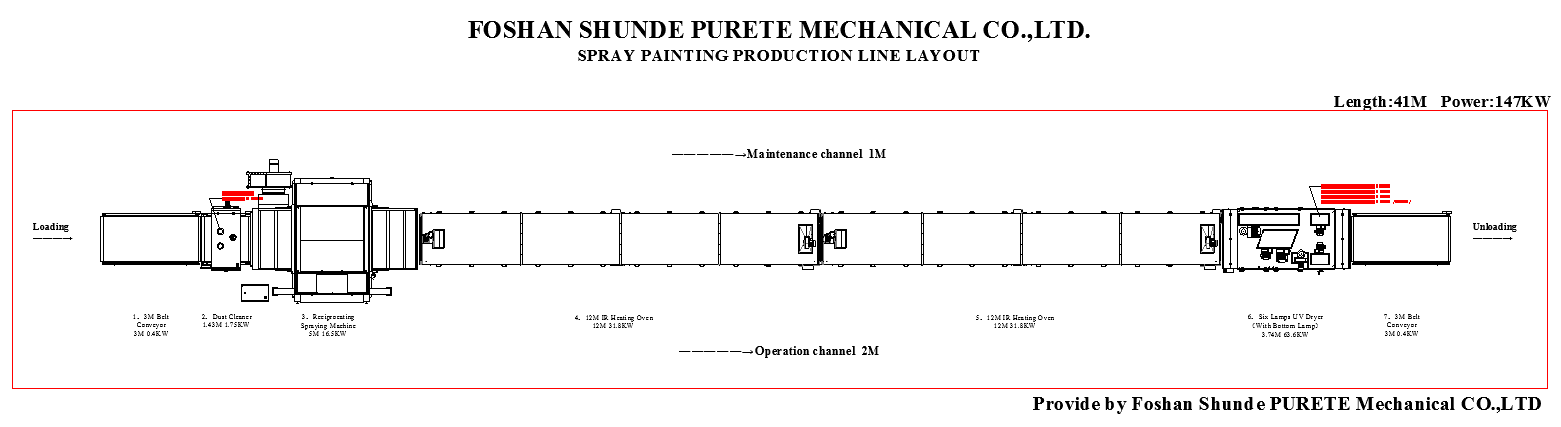

System Layout & Specifications
- Total Length: 41 meters
- Total Power: 147 KW
- Key Stations:
- Loading & Unloading Conveyors (3M each)
- Dust Cleaning & Pre-Treatment
- Automatic Spraying Machine (3M)
- Two 12M IR Heating Ovens
- 6-Lamp UV Dryer (with bottom lamps)
- Integrated Belt Cleaning System
- Channels: 2M operation channel + 1M maintenance channel for smooth workflow and easy servicing
Wide Range of Applications
The PURETE spray line elevates production across Oak Furniture West’s core product lines:
- Bedroom furniture (bed frames, dressers, nightstands)
- Home entertainment units (TV cabinets, media consoles)
- Wardrobe panels and storage components
- Occasional furniture and decorative pieces
Why Oak Furniture West Chose PURETE？
- Proven European-Level Design: Advanced airflow and mechanical systems solve common spray finishing pain points
- Cost-Effective Consumables: Short belt design cuts replacement costs and maintenance labor
- Consistent Quality: Precision cleaning and airflow eliminate defects, reducing rework
- Safety First: Pneumatic controls ensure compliance with strict workplace safety regulations
- Tailored for Woodworking: Optimized for wooden case goods, including bedroom furniture and cabinet components
Conclusion: Setting New Standards in Furniture Finishing
The PURETE spray painting line partnership empowers Oak Furniture West to scale production while maintaining premium quality standards. With double the output, half the defects, and significantly lower operational costs, the system positions the company for growth in the competitive North American furniture market.
