CNC Intelligent Spray Painting Machine: Custom Solution for Israeli Wooden Door Manufacturers
| Customer Pain Points | Our Targeted Solutions |
|---|
| Inconsistent paint quality on wooden doors, especially on edges and carved details | Equipped with 3D vision scanning system, automatically generates spraying programs to ensure uniform coverage on complex shapes and edges, with consistent film thickness across all workpieces. |
| High labor dependency and rising labor costs for manual spraying | Double-station rotary table design with automatic spraying cycle; reduces manual intervention by over 75%, eliminating reliance on skilled painters. |
| Low production efficiency, long cycle times for small-batch or custom door orders | High-speed reciprocating spray system + flexible fixture compatibility; supports quick switching between different door sizes/styles, significantly cutting lead times. |
| Paint waste and environmental compliance challenges | Precision paint flow control technology reduces material consumption; enclosed spray booth with dust collection system meets Israel’s environmental standards for VOC emissions. |
| Difficulty adapting to diverse workpiece sizes (standard/non-standard doors) | Handles max workpiece dimensions of 2800×1200×100mm, compatible with solid wood doors, cabinet doors, panel furniture, and shaped workpieces. |
2. Key Advantages of Our CNC Intelligent Spray Painting Machine
✅ 3D Vision-Driven Intelligent SprayingUses optical 3D structured light scanning to automatically generate spraying paths, no manual programming required. Achieves precise edge and corner coverage for carved, raised, or shaped wooden doors.
✅ High Efficiency & Flexibility
✅ Consistent, Premium Finish QualityEliminates common defects like orange peel, sagging, or missed spraying. Ensures uniform film thickness and color consistency, boosting product pass rate to over 99%.
✅ Cost-Effective & Eco-Friendly
Reduces labor costs by 75% and paint waste by up to 30% compared to manual spraying
Closed-loop dust collection system meets strict Israeli environmental regulations, lowering VOC emissions.
✅ User-Friendly Operation & Low Maintenance
| Feature | Our CNC Intelligent Spray Machine | Competitor A (Standard Reciprocating Sprayer) | Competitor B (Basic Robotic Sprayer) |
|---|
| 3D Vision System | ✅ Full 3D scanning, auto-program generation | ❌ Manual programming only | ⚠️ Limited 2D scanning, poor for complex shapes |
| Max Workpiece Size | 2800×1200×100mm | 2500×1000×80mm | 2600×1100×90mm |
| Adaptability to Irregular Doors | ✅ Excellent (handles carved, raised edges) | ❌ Poor (only flat panels) | ⚠️ Moderate (requires complex manual setup) |
| Paint Utilization Rate | ≥85% | 65-70% | 75-80% |
| Labor Reduction | 75%+ | 40-50% | 60-65% |
| Compliance with Israel’s Environmental Standards | ✅ Certified enclosed booth + dust collection | ❌ Basic open booth design | ⚠️ Limited filtration system |
| Production Flexibility (Small Batches) | ✅ Fast fixture/recipe switching | ❌ Requires dedicated jigs, slow changeover | ⚠️ Long programming time for new styles |
4. Application Industries & Workflow Layout
🛠️ Core Application Scenarios
- Wooden Door Manufacturing: Solid wood doors, carved doors, panel doors, and cabinet doors
- Furniture Production: Kitchen cabinets, wardrobes, and custom wood furniture components
- Surface Finishing Lines: Water-based paint, PU, NC, and UV coating applications
- Custom Woodworking: Small-batch, high-mix production runs for Israeli residential and commercial projects

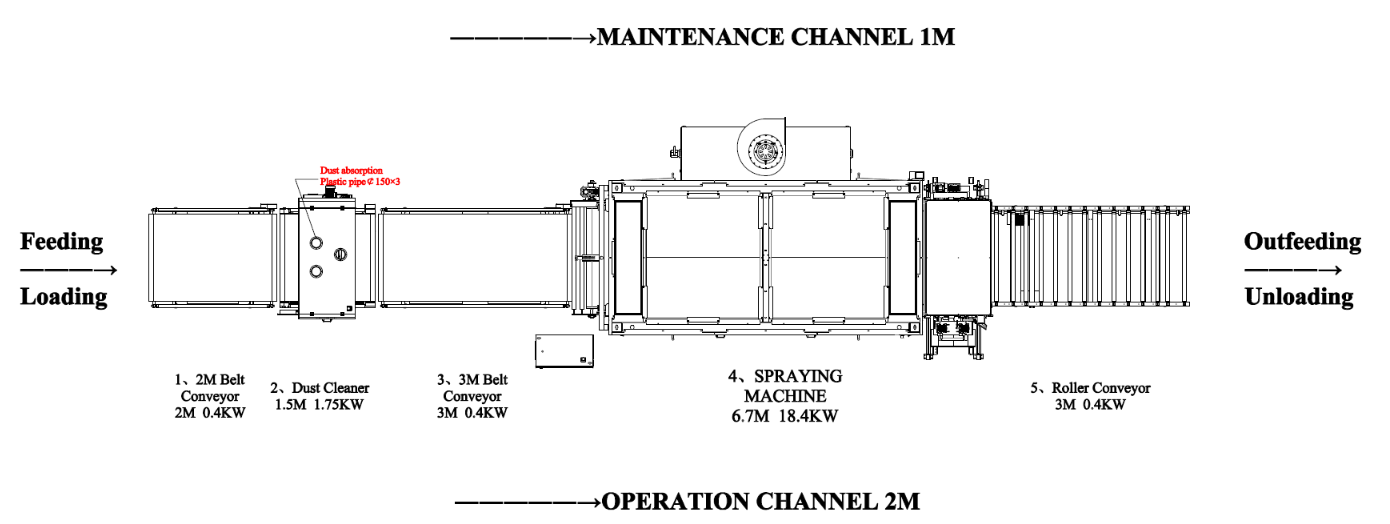

Full Production Line Layout (as shown in diagram)
| No. | Equipment | Specs | Function |
|---|
| 1 | Belt Conveyor | 2m, 0.4KW | Feeding/loading of raw workpieces |
| 2 | Dust Cleaner | 1.5m, 1.75KW | Pre-spray dust removal with dust absorption system |
| 3 | Intermediate Belt Conveyor | 3m, 0.4KW | Workpiece transfer to spraying station |
| 4 | CNC Spraying Machine | 6.7m, 18.4KW | Core spraying unit with 3D vision system |
| 5 | Roller Conveyor | 3m, 0.4KW | Outfeeding/unloading of finished workpieces |
- Operation Channel: 2m width for safe daily operation
- Maintenance Channel: 1m width for easy equipment servicing
- Designed for seamless integration into new or existing production facilities in Israel.
