Specialized for hot pressing of tricot paper into running boards.
VIDEO
ADVANTAGES
01
Wear-resistant, scratch-resistant
02
High temperature resistance
03
Acid and alkali corrosion resistance
04
Strong decorative properties
05
Long service life
06
High cost-performance ratio
TECHNICAL SPECIFICATIONS
Total length
32M
Output
800-1000 sheets/day
Power consumption
76KW
Finishing paper
Triamine paper, PVC, PET
Speed
30-35 seconds/sheet
Sheet size
1220*2750mm

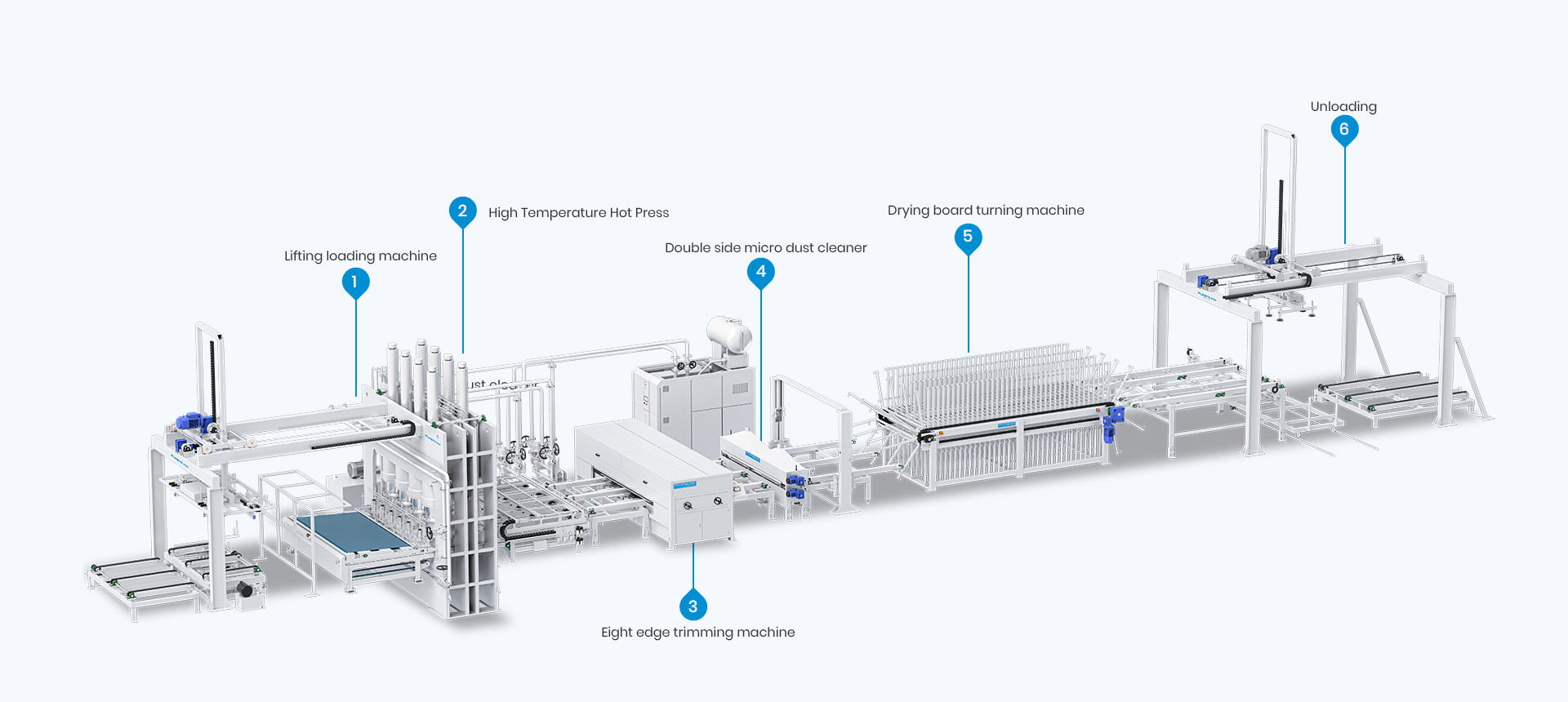

PRODUCTION LINE DETAILS
Surface Texture
The final effect depends on the heat plates installed inside the hot press. Different steel plate models and processing materials achieve various surface effects, such as high gloss, matte, wood grain, leather grain, embossed patterns, and 3D effects.
A1：A short cycle hot press machine is used to laminate melamine paper or decorative layers onto wood-based panels under high temperature and pressure within a short pressing time. It is widely used for producing decorative boards.
Q2：What substrates can be processed?
A2：MDF，Particle board，Plywood，HDF.It is mainly used in furniture panels, flooring core boards, and interior decorative boards
Q3：What materials can be laminated?
A3：Melamine paper，Decorative paper，Overlay paper，Impregnated kraft paper.It is ideal for synchronized texture and surface embossing effects.
Q4:Can it produce synchronized embossed panels?
A4:Yes.With high-precision steel plates, the machine can produce synchronized texture panels that match the wood grain pattern.
Q5:Can it be integrated into a full production line?
A5:Yes.It can be connected with automatic loading/unloading systems, board handling systems, and stacking lines for fully automated production.
Q6:Can natural gas be used?
A6:If natural gas is available, it can be connected directly to the mould temperature machine for immediate use.
Where natural gas is unavailable, bottled liquefied petroleum gas (LPG) may be employed. This requires a vaporiser to convert the liquid gas into a gaseous state prior to use.
Q7:Which is more efficient: the vertical press production line or the horizontal press production line?
A7:Longitudinal line:
1) Offers faster processing speeds.
2) Facilitates synchronised grain alignment more effectively.
3) Ensures superior force distribution across the presses, while aligning with the grain direction yields enhanced results.
