T3 Automatic Laminating Production Line

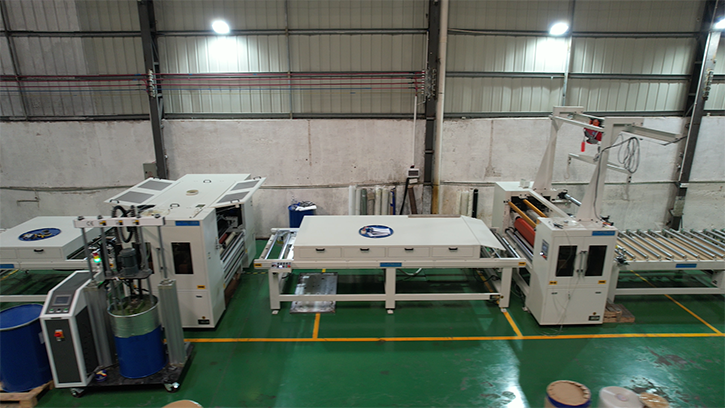

The T3 Automatic Laminating Production Line is a fully automated, high-capacity lamination system designed for continuous production without human intervention. It integrates advanced material handling, precise trimming, and high-efficiency lamination technology to ensure stable performance, consistent adhesion, and superior surface quality across large production volumes. This line is ideal for manufacturers requiring high-speed PUR lamination, decorative panel production, and mass customization for furniture, cabinets, doors, and wall panels. Its automated workflow reduces labor costs, enhances accuracy, and maintains reliable quality across every board. Composed of: Gantry loading, 8-edge trimming unit, sanding machine, gluing machine, laminating machine, short-edge film cutting system, board flipping machine, and unloading unit.

VIDEO

TECHNICAL SPECIFICATIONS

Total power

119kw

Installation area

10x50m

Production cycle

30days

Staffing

2~3

Line speed

10m/min

Capacity

1200pcs/day

Coating cost

10~30元/m²

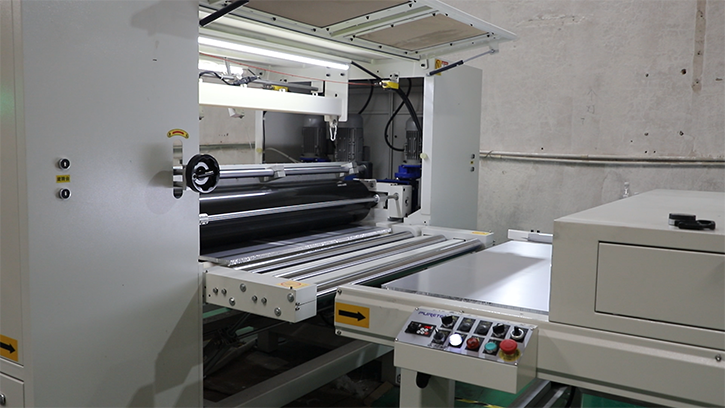

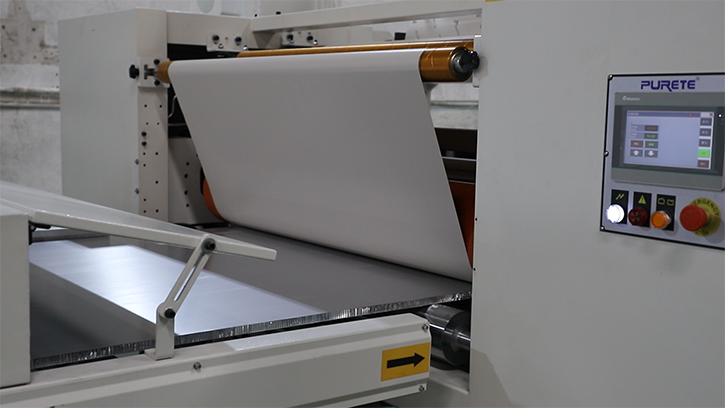

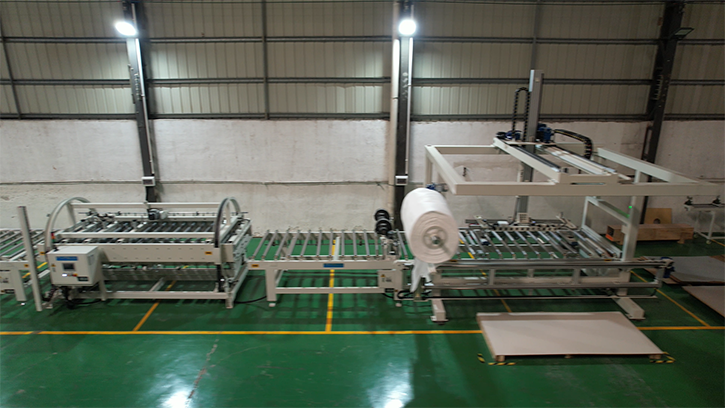

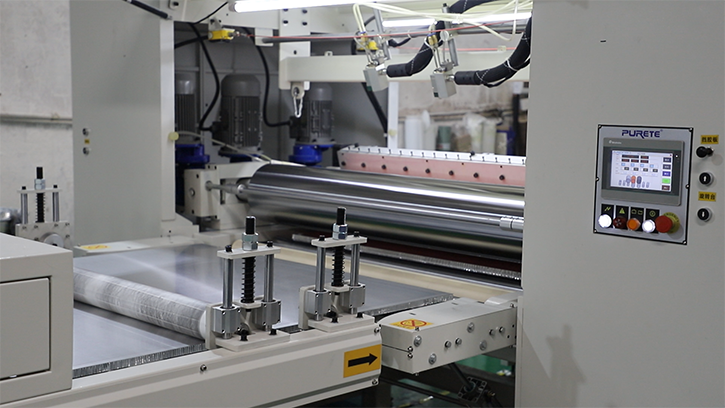

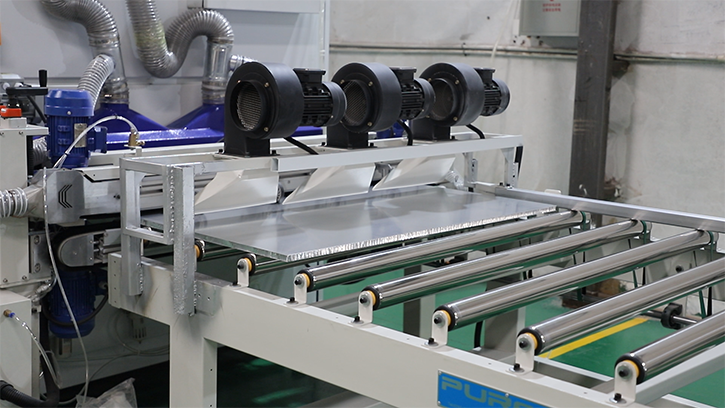

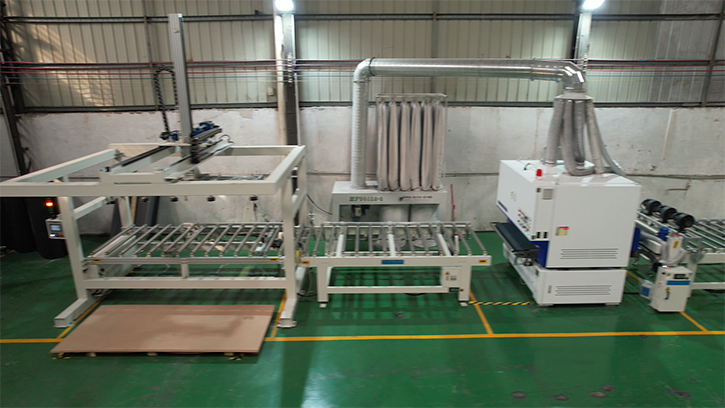

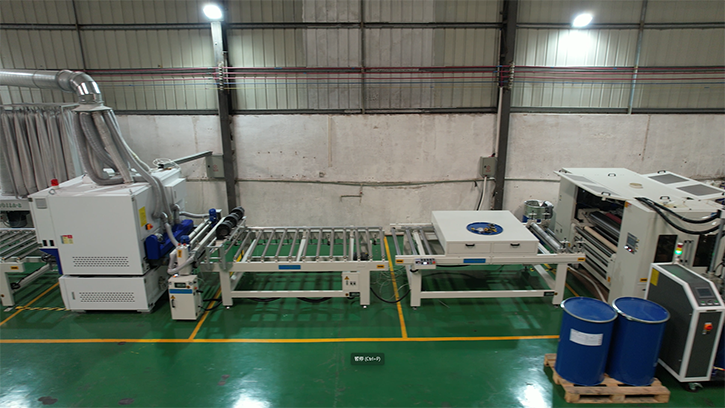

PRODUCTION LINE DETAILS

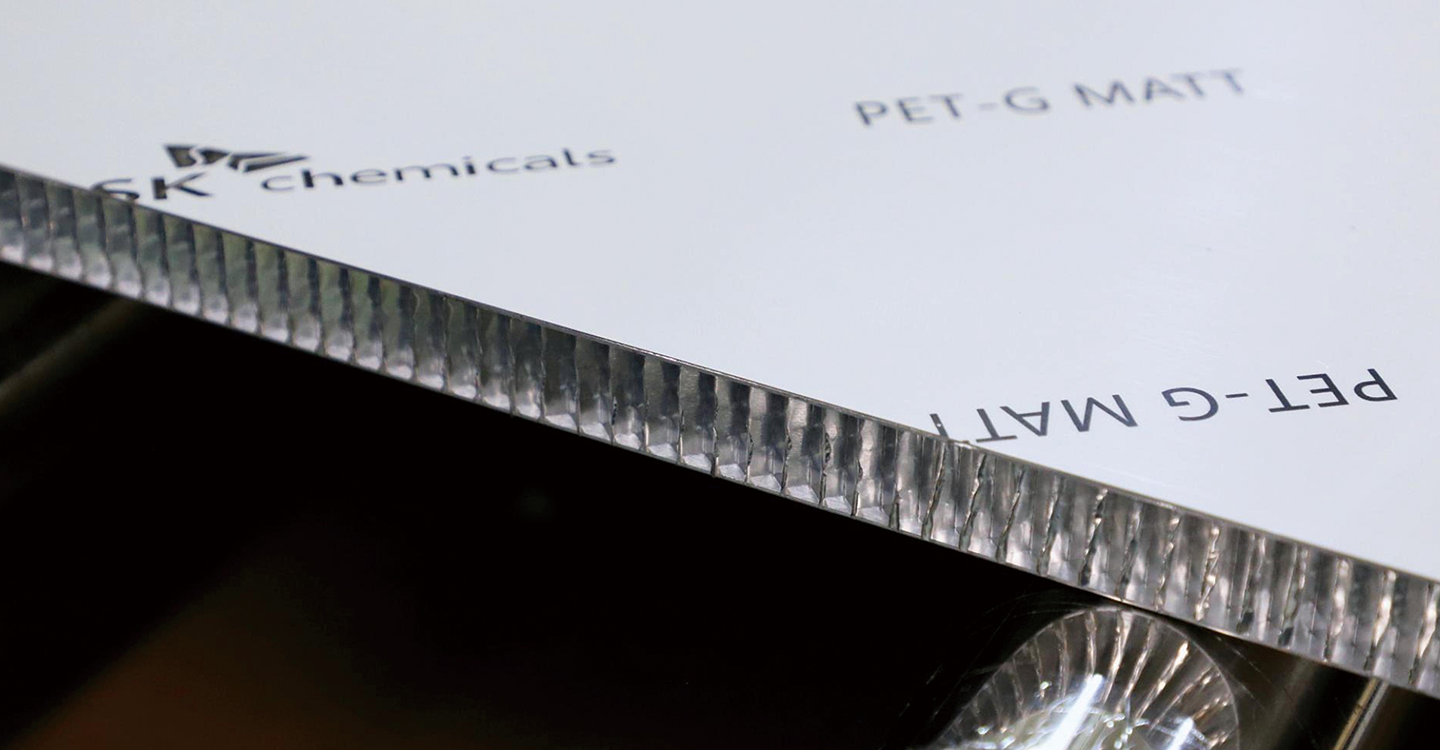

APPLICATION SUBSTRATES

Calcium silicate board

FAQ

Q1：What products are primarily processed on pur laminating machine production lines?

A1：Such as MDF, particleboard, plywood, and calcium silicate boards etc. They apply decorative materials including PVC film, PET film, melamine paper, and aluminium foil, finding extensive use in furniture, cabinetry, door panels, and decorative panel industries.

Q2：What materials can be laminated using a pur laminating line?

A2：PVC film，PET / PET-G film，Melamine paper，Wood grain paper，Aluminium foil，Fire-retardant panels

Q3：After applying the decorative material on the laminating line, is a laminating film cutting machine required? Does the decorative material already have a protective film?

A3：Our laminating line features a tracking film cutting device, enabling customers to cut the film material during roll application, thereby reducing manual labour and enhancing efficiency.

Regarding protective film, our laminating line incorporates a protective film application device. Generally, film materials are supplied without protective film. After lamination, if protective film is required per customer specifications, it is placed onto our protective film device for in-line application.

Q4:Is PUR laminating suitable for high-gloss PET surfaces?

A4:Yes.PUR provides strong bonding performance with high-gloss PET and PET-G films, ensuring smooth surfaces without bubbling or delamination.

Q5:How does the machine prevent bubbling and delamination?

A5:By precisely controlling glue application amount, pressing pressure, temperature, and line speed, the system ensures stable and uniform lamination quality.

Q6:Is maintenance complicated?

A6:Routine maintenance includes cleaning the glue system, checking rollers, and maintaining stable temperature control. Proper maintenance ensures long-term stable operation.

Q7:Can the PUR laminating machine be integrated into a full production line?

A7:Yes.It can be connected with sanding machines, dust cleaning units, automatic loading systems, and cutting machines to achieve continuous automated production.

Q8:Can PUR be used on particle board?

A8:Yes.For particle board, surface flatness and density consistency are important. With proper glue application control, PUR ensures stable bonding and long-term durability.
