How To Choose The Right Spray Coating Equipment For Your Factory?

In the world of industrial manufacturing, spray coating is more than just a finishing step—it's a critical process that defines the product's appearance, durability, and market value. As automation becomes a growing necessity, choosing the right spray coating equipment can determine the success of your production line.

With several technologies available—each with its own strengths and limitations—manufacturers must carefully evaluate their product type, production volume, and finish quality requirements before making an investment.

This article explores three of the most widely used technologies in today's industrial coating applications—5-axis spray coating machines, reciprocating spray coating systems, and robotic spray coating arms—and guides you through how to select the best solution for your needs.

Overview of Common Spray Coating Equipment Types

Spray coating machines have evolved from simple manual setups to fully automated, programmable systems. Today, smart factories demand coating solutions that are not only efficient but also highly adaptive to product complexity, finish quality, and automation level.

Among the various technologies, three equipment types dominate modern production environments:

• 5-axis spray coating machines: Ideal for curved or intricately shaped items

• Reciprocating spray systems: Suited for high-throughput flat surface coating

• Robotic spray arms: High-end automation for complex, large-scale components

Each of these technologies serves a specific set of use cases, and understanding their core features is essential to choosing the right one.

1. 5-Axis Spray Coating Machines

5-axis spray machines are designed to handle complex, multi-surfaced parts that require coating from various angles. By combining rotary and linear motion across five coordinated axes, these systems can precisely coat 3D objects such as carved wood panels, musical instruments, plastic housings, and automotive interior components.

They offer programmable path control, enabling fine-tuned spray trajectories that reduce overspray and improve paint usage efficiency. Their ability to adapt to irregular geometries makes them suitable for custom production or small-to-medium batch orders.

However, 5-axis machines require skilled technicians for programming and setup. While the equipment cost is lower than robotic systems, the operational complexity is higher than standard reciprocators. With proper integration, 5-axis sprayers strike a balance between precision, flexibility, and cost-efficiency.

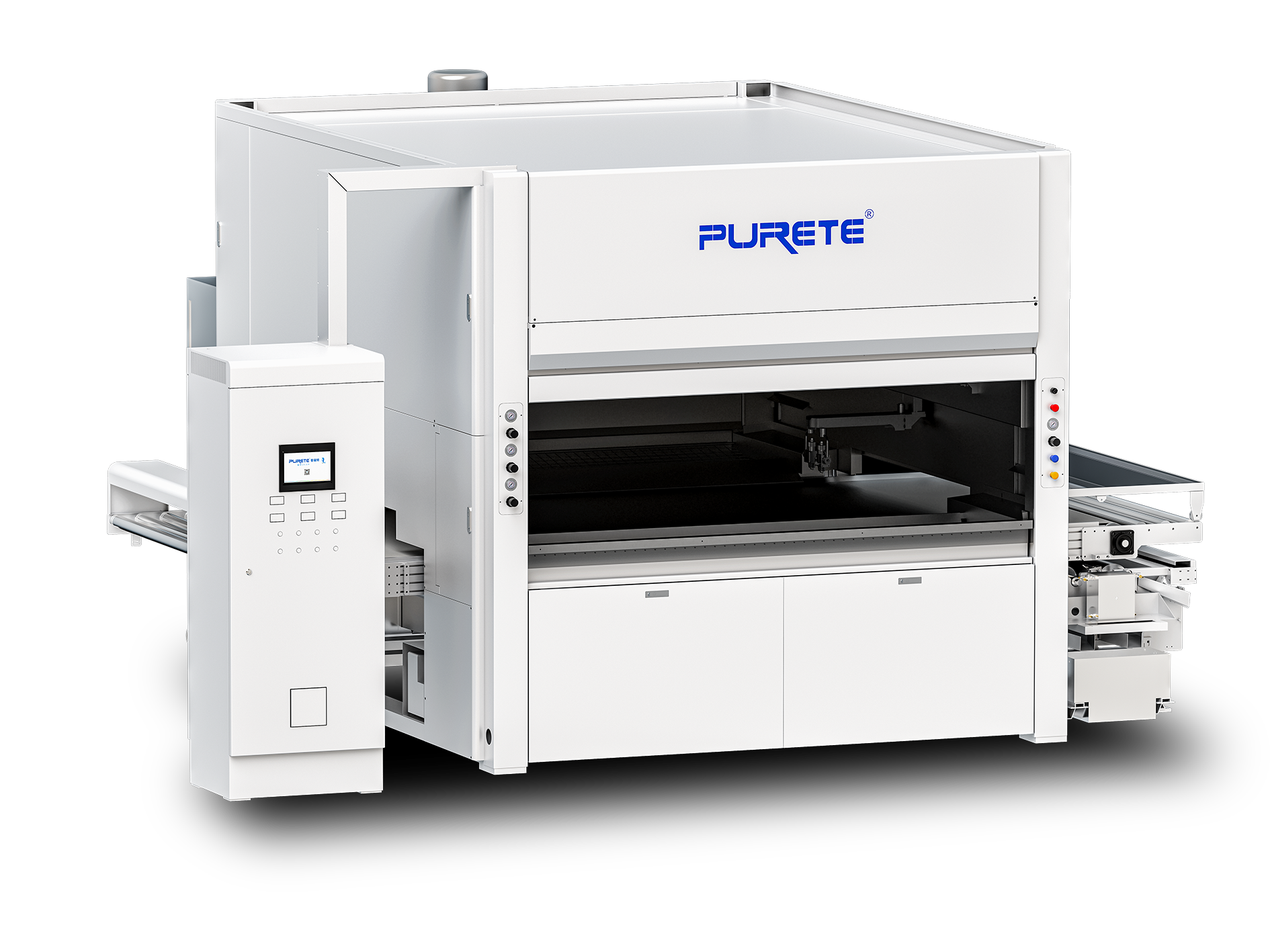

2. Reciprocating Spray Coating Systems

Reciprocating spray systems are the go-to solution for factories focused on mass production of flat or regular-shaped products—like cabinet doors, furniture panels, metal sheets, and glass surfaces.

These machines operate with spray guns that move back and forth in straight paths across the product surface, ensuring even coverage at high speed. Some systems also feature profile scanning to detect the workpiece outline and optimize spray activation.

With a relatively low upfront investment, simple structure, and ease of maintenance, reciprocating systems are ideal for manufacturers seeking automated throughput without technical complexity. They support a wide range of paints including PU, UV, NC, and water-based coatings.

While edge coverage and surface adaptability are limited compared to multi-axis systems, their cost-effectiveness and high-speed operation make them perfect for standardized production.

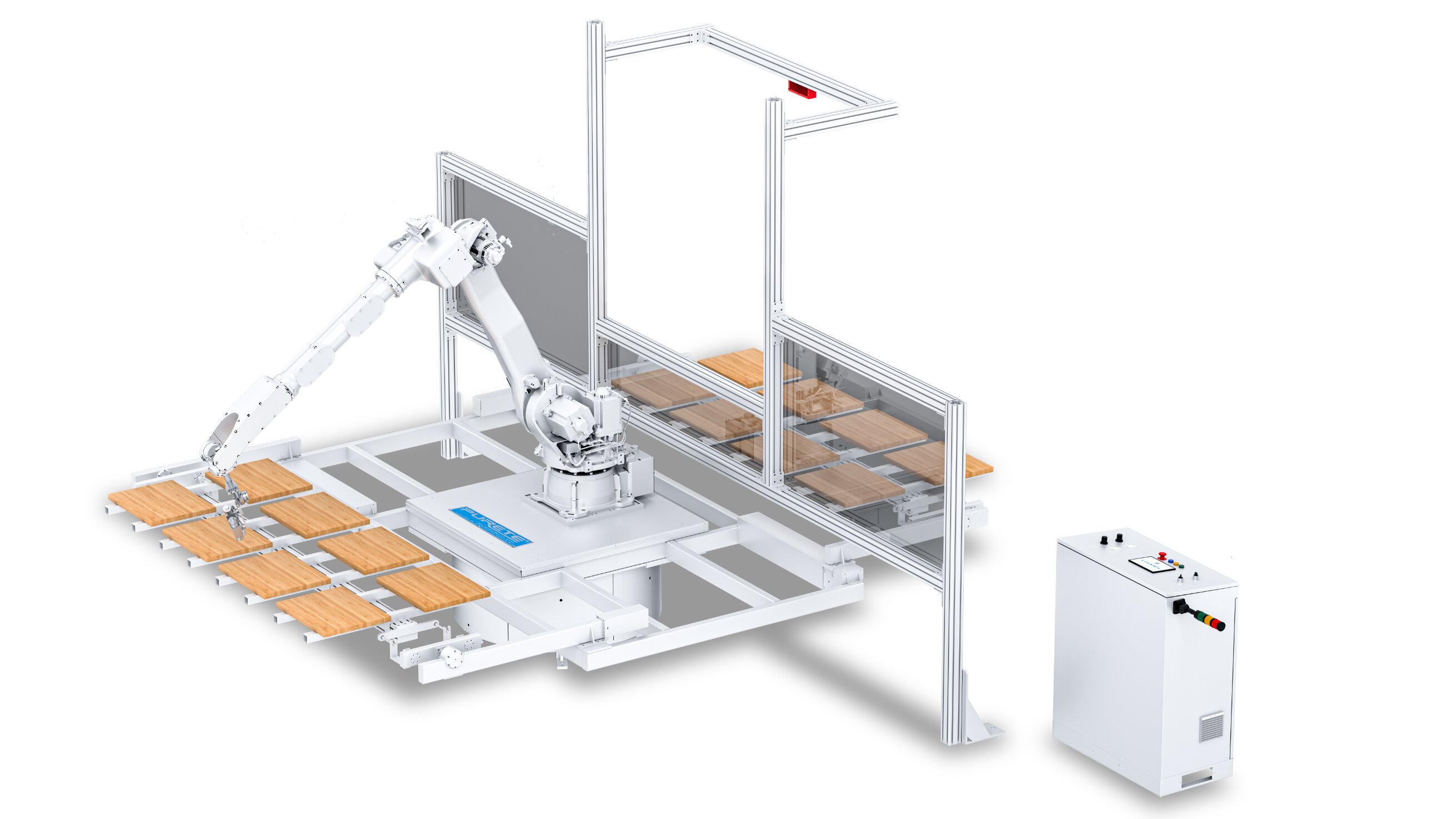

3. Robotic Spray Coating Arms

Robotic spray coating systems represent the highest level of automation in industrial finishing. Featuring 6-axis or greater flexibility, these robotic arms are engineered to coat large, complex, and multi-dimensional parts, such as automobile bodies, plastic bumpers, appliance enclosures, and premium furniture components.

They can be integrated with vision systems, smart sensors, and automated material handling, making them ideal for high-volume, high-precision manufacturing. Robotic spray arms excel at delivering consistent film thickness, superior surface finish, and efficient paint usage.

That performance, however, comes at a cost. The initial investment is the highest among the three options, especially when using imported industrial robots like ABB, KUKA, or Fanuc. They also require trained personnel for programming, diagnostics, and maintenance.

Nevertheless, for facilities with demanding output requirements and a long-term vision for automation, robotic spray systems offer unparalleled consistency and ROI.

Comparing Spray Coating Equipment: What Matters Most?

When deciding between these three technologies, several key factors come into play:

• Coating quality: Robotic systems deliver the most consistent surface finishes, followed by 5-axis machines. Reciprocating systems offer reliability for flat surfaces but may lack precision on edges or contours.

• Adaptability: 5-axis sprayers excel in coating diverse and irregularly shaped objects. Robots provide flexibility in motion but often need reprogramming. Reciprocating machines are best suited for consistent, flat components.

• Automation level: Robotic arms offer full integration with smart manufacturing systems. 5-axis machines provide moderate automation, while reciprocators operate at a simpler level.

• Paint usage efficiency: Multi-axis and robotic systems reduce overspray through controlled spray paths. Reciprocating machines improve usage compared to manual coating but may generate more waste on complex parts.

• Operating cost: Reciprocating systems are the most budget-friendly to operate. 5-axis machines require moderate technical skills and upkeep. Robotic systems need long-term investment in programming and maintenance support.

Key Factors to Consider When Choosing a Spray Coating System

Selecting the right spray coating solution goes beyond comparing specs. The best machine is one that fits your products, factory workflow, team skill level, and business goals.

1. Product Shape and Surface Complexity

Flat or simple products = reciprocator. Irregular shapes or curves = 5-axis. Highly complex or multi-geometry parts = robot.

2. Production Volume and Consistency

For high-volume, repeatable production, robots and reciprocators offer the best efficiency. If you're producing custom batches or varying shapes, 5-axis gives more flexibility.

3. Coating Materials and Finish Requirements

Do you use specialty paints like metallics or two-component finishes? Robots handle precision-demanding coatings best, followed by 5-axis. Reciprocating systems support general-purpose industrial coatings efficiently.

4. Budget vs. Long-Term ROI

Reciprocating = low upfront, fast payback 5-axis = mid-tier cost, high adaptability Robot = high initial cost, maximum labor savings and surface precision

5. Technical Capability and Maintenance

Simple machines like reciprocators are easy to maintain in-house. 5-axis and robots demand experienced operators and regular technical support.

PURETE's Customized Spray Coating Solutions

At PURETE, we understand that every factory has different needs. That's why we offer tailor-made spray coating solutions—designed around your product type, production targets, and automation level.

Our engineering team works closely with you to evaluate your requirements and deliver:

• 5-axis spray systems optimized for complex, curved, or custom-shaped workpieces

• Reciprocating spray machines engineered for consistent, high-volume panel coating

• Robotic spray arms integrated into automated finishing lines for precision and scale

We don't just supply machines—we help you build efficient, sustainable spray lines, from layout planning to after-sales support. With expertise in wood, plastic, metal, and composite material coating, PURETE empowers manufacturers across sectors to achieve better results with smarter equipment.

Conclusion

Choosing spray coating equipment is a critical step toward improving product finish, reducing waste, and increasing factory efficiency. Whether you're looking to automate mass production with a reciprocating system, handle unique product forms with a 5-axis machine, or take your finishing to the next level with robotic arms—the key is finding the right match for your needs.

With its commitment to intelligent equipment and customer-driven engineering, PURETE is ready to help you implement a coating system that elevates both performance and profitability.
