Roll Coating Defects: Symptom-Based Diagnosis Before Process Adjustment

A roller coating defect can look like a simple setting problem: a stripe appears, the film looks heavier at an edge, a panel shows poor transfer, or small bubbles emerge after the coating station. The usual reaction is to change line speed, roller pressure, gap, or material condition immediately. That reaction can make the original problem harder to see. When several settings change at once, the next panel no longer tells the team which change mattered.

For a production team, the more reliable approach is to treat the visible defect as evidence. Its shape, position, timing, and repeat pattern can point the first inspection toward the coating material, the transfer zone, the workpiece, or a downstream stage. The aim is not to assign a cause from appearance alone. The aim is to choose the first useful check, make one controlled verification, and then turn the confirmed finding into a repeatable prevention step.

This article focuses on roller coating of flat panels and similar workpieces. It does not replace a coating supplier's material instructions, a machine manual, plant quality criteria, or authorized maintenance procedures. It gives process and production teams a disciplined path for deciding what to look at before changing the process. For broader context on the manufacturer and its finishing solutions, visit PURETE surface finishing solutions.

Why Changing Several Settings at Once Makes Defects Harder to Solve

Roll coating is a connected process. The coating arrives at the application zone in a particular condition. Rollers meter and transfer it to a substrate that has its own surface condition and geometry. Conveyor behavior influences how the workpiece meets the coating zone. Drying or curing makes some problems visible only after the transfer event has already passed. A visible mark may therefore be associated with the coating head, but it may also have begun earlier or become noticeable later.

That is why an immediate multi-setting adjustment often creates a false sense of progress. A change may hide a symptom for a short run while leaving the underlying source untouched. It may also introduce a new variable that makes the next trial impossible to interpret. For example, if a team changes material handling, roller settings, and conveyor conditions together, a better result does not show which part of the process improved. A worse result does not show where to start again.

The first technical decision is therefore not “Which setting should we move?” It is “What evidence do we have about this defect?” A useful record makes the answer more specific. Is the mark continuous or isolated? Does it stay in the same cross-panel position? Does it recur at a regular interval? Is it visible immediately after coating, after leveling, or only after the next process stage? Did it begin with a material batch, a workpiece change, a cleaning event, or a shift change?

These questions do not delay correction. They reduce unproductive correction. A team that can describe a defect consistently can compare panels, separate old evidence from new evidence, and decide whether the first cause path should be material, equipment contact, workpiece preparation, or downstream handling.

Start With a Defect Record, Not an Adjustment

The record should be practical enough for an operator or engineer to complete during production. Keep a representative panel or image under the plant's quality procedure, then capture the defect in plain language, its panel position, the first inspection point, the workpiece and coating system, the production window, and any known recent change. This is enough to preserve the pattern that a later adjustment could erase.

Capture Appearance, Location, Timing, and Repeat Pattern

Use position and repetition to select the first inspection route. A machine-direction line, a fixed cross-panel band, an edge-only condition, and a random mark are different starting signals. Compare affected panels with normal panels immediately before them, especially across material replenishment, workpiece changes, cleaning, interruption, or shift changes. Record a stable repeat interval for the equipment review; record a nonrepeat result as well, because it changes the first hypothesis.

Separate a New Defect From a Recurring One

A new defect should be compared with what changed; a recurring defect should be compared with its prior confirmed record. This prevents applying an old remedy to a different-looking problem simply because both are called streaks or bubbles. Preserve the observation and the confirmed finding, not merely a list of adjustments.

Use the Visible Symptom to Choose the First Cause Path

The table below is a starting map, not a fault code list. It is designed to help a team choose the first evidence group. Similar-looking defects can have different origins, and the final conclusion should come from a controlled check rather than the label alone.

Streaks, Bands, and Repeat Marks

First establish whether the mark follows the machine direction, holds a fixed cross-panel position, or repeats at a regular interval. A stable signature gives the authorized equipment review a usable route: compare the affected position with the relevant transfer surfaces, doctor-blade area where applicable, alignment record, and drive history. A random distribution should instead be compared with material, contamination, handling, and workpiece history. The useful output is a focused inspection request, not an unsupported statement that a named component has failed.

Uneven Film, Heavy Edges, and Incomplete Transfer

For uneven film, first classify the distribution: across the panel width, in the machine direction, at leading or trailing areas, or only at edges. An edge-only condition calls for a focused comparison of workpiece path, geometry, and local transfer behavior. A whole-width imbalance calls for a broader comparison of delivery history, transfer consistency, and material/workpiece history.

For incomplete coverage, determine whether the affected area follows a substrate feature, a panel orientation, a stable line position, or a later process event. This produces a direct next decision: if it follows the workpiece, prioritize preparation and material-surface evidence; if it follows the process position, prioritize transfer and delivery evidence. Do not collapse both possibilities into a generic “more coating” adjustment.

Bubbles, Pinholes, Particles, and Isolated Surface Marks

For bubbles or openings, identify the first visible stage and compare their location with material, handling, and downstream history. If the condition appears only after the next stage, keep that interface in the first inspection route rather than treating the coater as the sole source.

For particles or bumps, distinguish isolated marks from clusters and record the affected surface side. Then compare cleaning, handling, material, workpiece, and line-environment events with a normal run. Once a source is confirmed, use the plant's established procedure; this article does not replace it.

Check the Process in Five Evidence Groups

The most efficient diagnostic path separates the process into evidence groups. This does not mean every group must be checked for every defect. It means the team can select a primary route, document the result, and move to the next route only when the first route does not explain the observed pattern.

Coating Condition and Delivery History

Begin with the material information that already belongs to the run: the coating system, batch identity, preparation and use history, and any records for filtration, circulation, or replenishment that the plant maintains. Compare affected and unaffected panels without inventing a target value. The question is whether the material or delivery history changed in a way that aligns with the defect pattern.

Material evidence is strongest when it can be compared against a normal reference run. If the condition began at a clear time boundary, preserve that boundary. If no material difference is found, record that outcome instead of assuming the material has been cleared forever. A negative check is still useful because it narrows the next inspection and keeps the process team from returning to the same unproductive hypothesis.

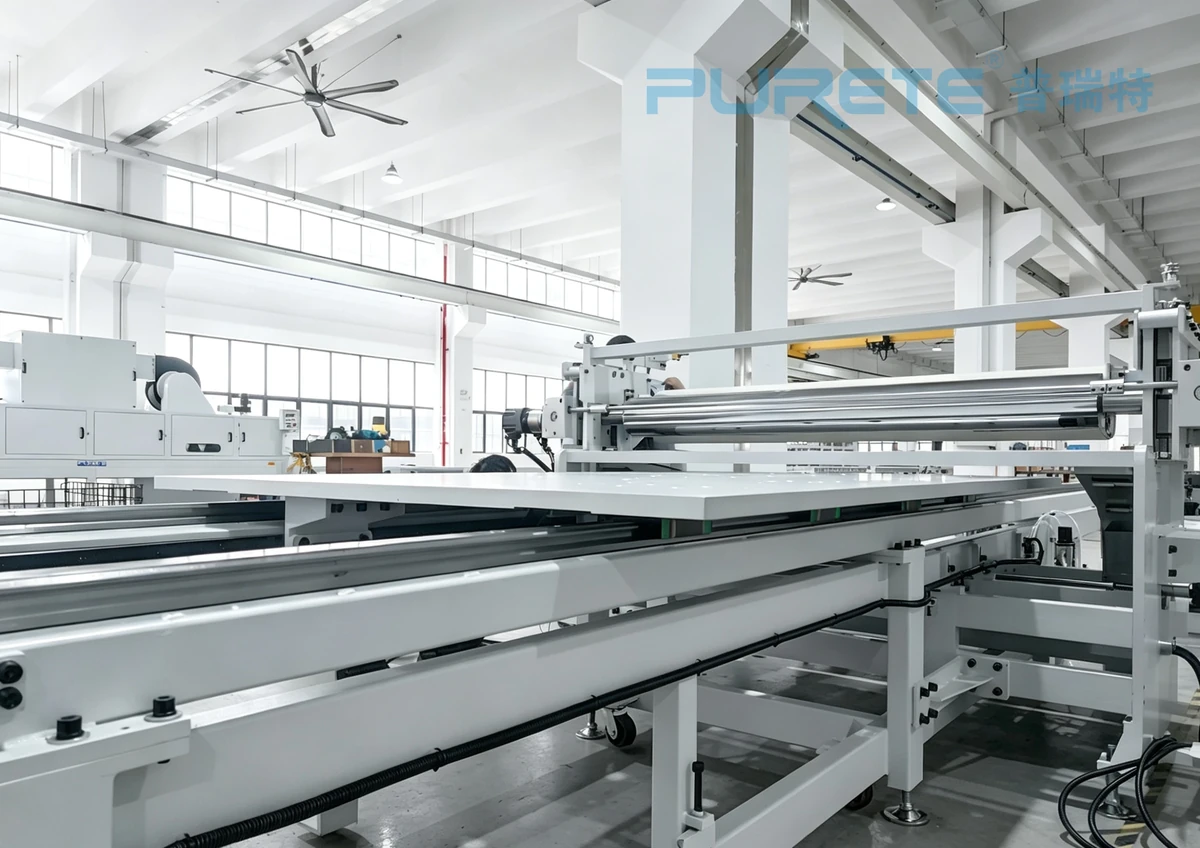

Roller, Doctor Blade, Gap, Alignment, and Drive Evidence

The transfer zone should be reviewed through observable evidence and authorized inspection records. Look for a relationship between the defect pattern and the relevant working surfaces, metering components, alignment condition, or drive behavior. A recurring mark, a stable band, or a condition associated with a specific production event can help identify which evidence matters.

Do not turn this review into an operator-level repair instruction. Roller removal, blade work, mechanical adjustment, lubrication, calibration, guarding, and other maintenance tasks must follow the equipment documentation and site procedures. The production team's contribution is to deliver a clear symptom record: which panels were affected, where the mark occurred, how it repeated, and what changed after a controlled test. That record makes an equipment review more focused and protects the line from unnecessary intervention.

When the evidence does point to routine care or a component-condition issue, direct the reader to PURETE's existing guide on roller coating equipment maintenance and cleaning. The guide is the appropriate destination for the maintenance topic; this article remains focused on diagnosis before adjustment.

Substrate Preparation and Downstream Interfaces

The workpiece is part of the process, not just the recipient of the coating. Record the material type, surface condition, handling route, and any difference between normal and affected workpieces. The goal is not to make a general claim about adhesion or compatibility. It is to identify whether the visible pattern follows the workpiece or follows the process.

Downstream interfaces matter as well. A defect seen later may reveal an earlier issue, but the timing must be recorded before the team attributes it to the coating head. Track where the panel was first inspected and whether the appearance changed after the next process step. This helps separate a transfer-related hypothesis from a drying, curing, transport, or handling hypothesis without presenting a universal rule for any one coating system.

History, Change Control, and Normal References

The fifth evidence group is historical. Compare the affected run with the most relevant normal reference: a recent run using the same workpiece and coating system, a prior defect record, or a documented control sample maintained by the factory. A normal reference shows the team what is different; it does not prove the cause by itself.

Change control keeps the diagnosis usable. Record the exact trial panel, the one factor deliberately changed, the unchanged conditions, and the observed result. If the result is inconclusive, say so. An inconclusive test is better than a confident guess because it preserves the ability to run a clean next test.

Define What Would Disprove the First Hypothesis

Before a trial begins, write down what result would weaken the current hypothesis. This is the step that turns a check into a diagnostic test. If the team believes a fixed-position band is associated with a particular transfer path, the test needs an observation that can show whether the band remains fixed, moves, or disappears under the controlled comparison. If the team believes a coverage issue follows a workpiece condition, the comparison needs otherwise similar workpieces with a clear way to identify which condition changed.

This discipline avoids a common trap: interpreting every result as support for the first explanation. A panel that improves after a broad intervention may be useful for production containment, but it is weak evidence for a specific cause. A focused result that conflicts with the initial theory is valuable because it tells the team to stop investing in that route. The next check can then be selected from the remaining evidence groups instead of repeating the same adjustment with a different label.

Use a Normal Panel as a Comparison Tool

An affected sample is important, but a comparable normal sample often makes the difference visible in a useful way. Select a normal panel that is close to the affected panel in workpiece type, process route, and observation point. The purpose is not to declare one panel a universal standard. It is to identify the smallest meaningful difference between normal and abnormal production.

Compare the two samples in the same order each time. Start with the visible location and direction of the defect. Then compare the workpiece history, coating and delivery history, relevant process event, and the point at which each panel was inspected. Keep the comparison tied to the reader's question: does the condition follow the panel, the material event, the transfer position, or a later process stage? A normal reference makes that question easier to answer without introducing an unapproved parameter target.

Hand Off a Diagnostic Package, Not Only a Symptom Name

When an issue needs maintenance, quality, material, or engineering input, the handoff should contain enough evidence for the next owner to act. A useful package includes representative affected and normal samples or images, the symptom description, panel position and direction, first visible stage, relevant production window, workpiece and coating identification, recent changes, and the result of the first controlled comparison.

This handoff is more effective than a message saying “there are streaks” or “the coating is uneven.” It tells the next reviewer whether the task is to inspect a repeat signature, compare a material event, review the workpiece path, or study a downstream interface. It also keeps the production team from making a second round of unrelated adjustments while another group is investigating the first route.

Run One Controlled Verification Before Changing the Recipe or the Line

Once the first route is chosen, run one comparable verification: keep the workpiece, coating system, and observation method stable where the operation allows, and change only the factor justified by the evidence. The trial should answer one question, such as whether a band remains tied to the same transfer position or whether a coverage issue follows the workpiece.

Do not make recipe and line changes as the first combined experiment. If an emergency action is necessary, record it as containment rather than root-cause confirmation. A confirmed relationship becomes a prevention action; a rejected relationship closes that path for the current investigation; an inconclusive result defines the next comparison.

Turn Confirmed Defects Into Prevention and Maintenance Feedback

The final value of diagnosis is not the first corrected panel. It is the ability to prevent the same pattern from consuming time again. Once a cause path is confirmed, update the defect record with the symptom description, the evidence used, the verified finding, the authorized action, and the prevention owner. Link that record to relevant maintenance, material-handling, workpiece-preparation, or quality routines already used by the plant.

Keep the feedback specific. “Improve maintenance” is not a useful prevention action. “Add the confirmed inspection point to the applicable routine and retain the visual reference sample” is more useful because it ties the future check to the actual pattern. The same principle applies to material and workpiece evidence: retain the information that allowed the team to distinguish normal from abnormal, rather than recording only that the problem disappeared.

For recurring symptoms, review whether the team is seeing the same pattern or merely using the same defect name. A small number of well-documented examples can help a new shift or maintenance reviewer recognize the right first cause path. This is especially valuable when a symptom has a stable location or repeat signature. It turns previous work into a faster, more disciplined starting point without pretending that every future event has the same cause.

When a Defect Points to a Line-Interface Review

Some defect investigations show that the question is larger than one adjustment or one maintenance event. If evidence repeatedly connects the symptom to the relationship between coating delivery, roller transfer, workpiece movement, surface preparation, and downstream processing, the next step may be a line-interface review.

At that point, the useful input is the defect record, not a general statement that the line is unstable. Share the workpiece type, coating system, surface target, the process route, affected and normal samples, the observed pattern, and the results of controlled checks. This allows the discussion to focus on the interface that the evidence has actually identified.

PURETE approaches this type of discussion as a production-line solution partner: coating units, material handling, cleaning, conveying, and downstream modules must be considered as connected parts of a process route. Explore the relevant equipment context through the roller coating production line page once the diagnostic record shows that a broader interface review is warranted. Equipment is not presented here as the automatic answer to every visible defect; the record determines whether a line-level discussion is useful.

Conclusion: Diagnose the Pattern Before Changing the Process

Roll coating defects become easier to address when the production team stops treating every visible problem as an immediate setting change. Start with the symptom: what it looks like, where it appears, when it appeared, and whether it repeats. Use those observations to select one evidence group. Run one controlled verification. Then record the confirmed finding so the next occurrence begins with better information.

This approach does not promise that every defect will have a simple cause. It creates a clearer path from a visible condition to an informed action. It also helps separate a local correction from an issue that needs maintenance feedback, material review, workpiece preparation review, or a broader line-interface discussion.

If recurring defects remain after a documented, controlled check, share the defect record, workpiece, coating system, and current process route with PURETE to discuss the relevant line interfaces and validation path. Contact PURETE about your roller coating diagnosis.
