G2-A Multi-Functional Roller Coating Production Line

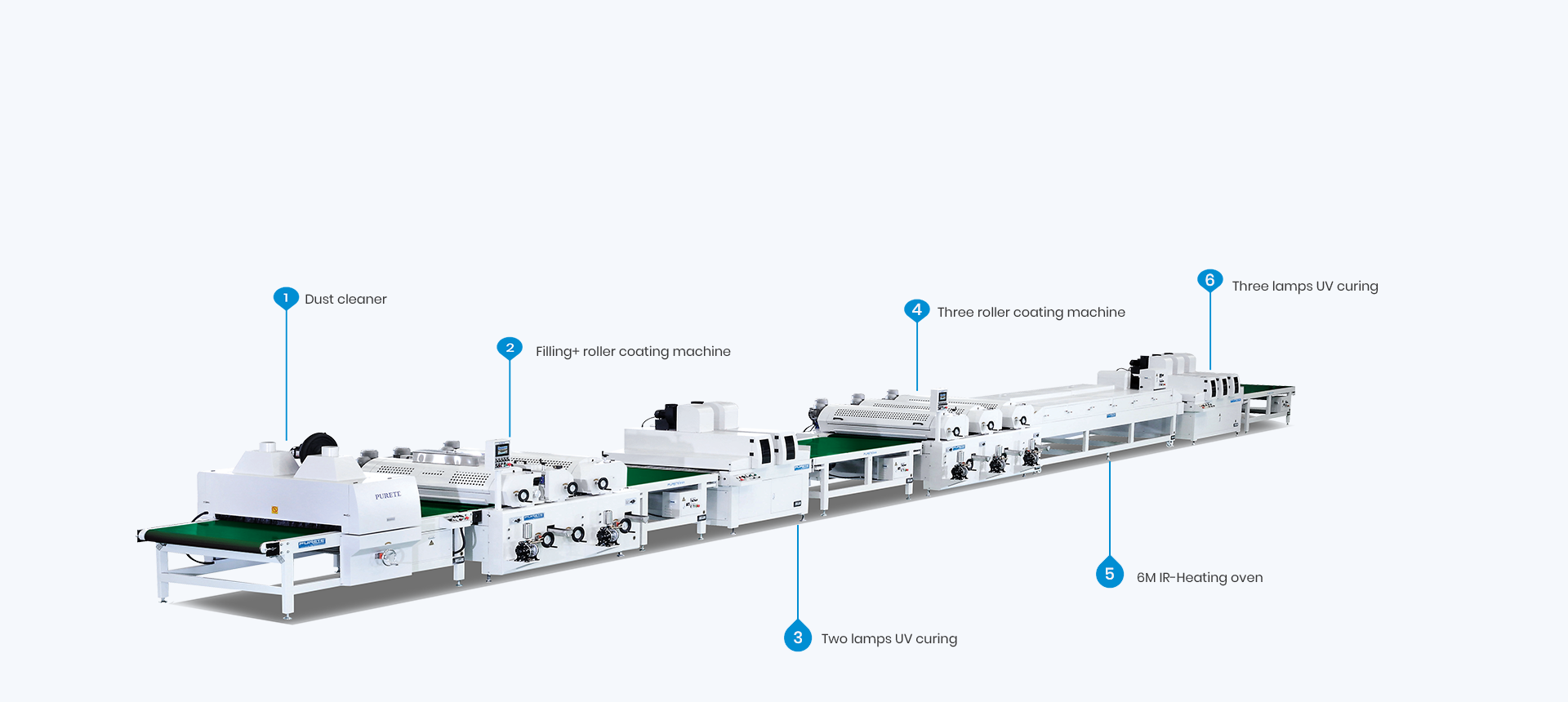

The G2-A roller coating production line is a versatile UV coating solution designed for single standard product batch orders and mixed oil coatings. With fast processing speeds and stable, uniform coating performance, this automated line enables multi-coating operability in a single production workflow. The system integrates a dust removal unit, a combined filling and roller coating machine, dual-lamp UV curing, a three-roller coating setup, a 6-meter IR heating oven, and an additional three-lamp UV curing station. Ideal for industrial applications requiring flexibility and high efficiency, the G2-A ensures consistent quality while reducing labor requirements and enhancing production capacity.

TECHNICAL SPECIFICATIONS

Total power

92KW

Air consumption

1200L/H

Installation are

6*8M

Prodution cycle

15Days

Staffing

3-5

Line speed

5-20m/min

Capacity

3000M²/8H

Caoting cost

3-5yuan/M²

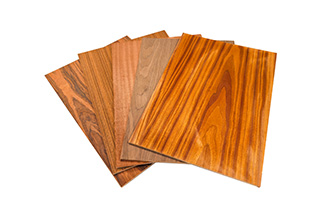

APPLICATION SUBSTRATES

Glass-magnesium board

Calcium silicate board

Client Case

Korea Glass Coating Line Case Application

Korea - Density Board/Flooring UV oil mixing program

SARL SOGIDIS Factory

Renowned US Cabinet & Furniture Company

Malaysian companies Custom Home Design

FAQ

Q1：What products are primarily processed on pur laminating machine production lines?

A1：Such as MDF, particleboard, plywood, and calcium silicate boards etc. They apply decorative materials including PVC film, PET film, melamine paper, and aluminium foil, finding extensive use in furniture, cabinetry, door panels, and decorative panel industries.

Q2：What materials can be laminated using a pur laminating line?

A2：PVC film，PET / PET-G film，Melamine paper，Wood grain paper，Aluminium foil，Fire-retardant panels

Q3：After applying the decorative material on the laminating line, is a laminating film cutting machine required? Does the decorative material already have a protective film?

A3：Our laminating line features a tracking film cutting device, enabling customers to cut the film material during roll application, thereby reducing manual labour and enhancing efficiency.

Regarding protective film, our laminating line incorporates a protective film application device. Generally, film materials are supplied without protective film. After lamination, if protective film is required per customer specifications, it is placed onto our protective film device for in-line application.

Q4:Is PUR laminating suitable for high-gloss PET surfaces?

A4:Yes.PUR provides strong bonding performance with high-gloss PET and PET-G films, ensuring smooth surfaces without bubbling or delamination.

Q5:How does the machine prevent bubbling and delamination?

A5:By precisely controlling glue application amount, pressing pressure, temperature, and line speed, the system ensures stable and uniform lamination quality.

Q6:Is maintenance complicated?

A6:Routine maintenance includes cleaning the glue system, checking rollers, and maintaining stable temperature control. Proper maintenance ensures long-term stable operation.

Q7:Can the PUR laminating machine be integrated into a full production line?

A7:Yes.It can be connected with sanding machines, dust cleaning units, automatic loading systems, and cutting machines to achieve continuous automated production.

Q8:Can PUR be used on particle board?

A8:Yes.For particle board, surface flatness and density consistency are important. With proper glue application control, PUR ensures stable bonding and long-term durability.
